Logo fenetre alu et porte Satin Moon Factory Spirit Satin Moon casement frames with concealed handles

Satin Moon® Hidden handle is a new joinery system used for casement windows and French windows with concealed opening bars and thermal break. For newbuild and renovation projects this range is available in side-hung, tilt-turn and top-hung options, all with incorporated thermal bridge breaker technology.

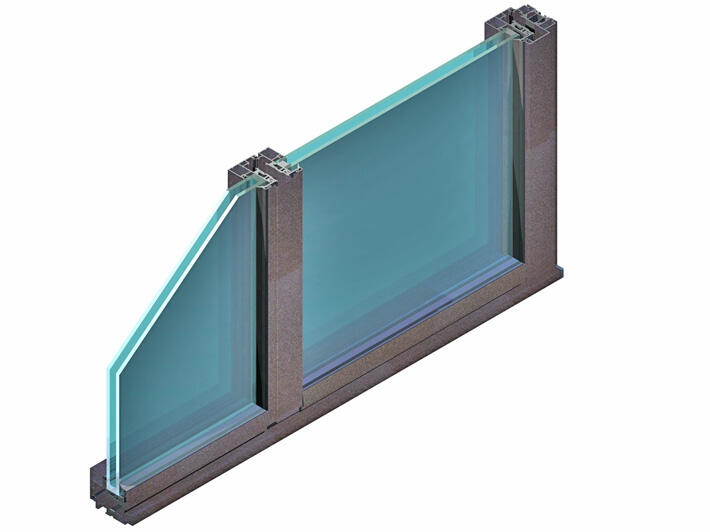

3D Fenêtre alu Satin Moon à Ouvrant caché

Design and Fineness

Highlights

  • Thermal protection greater than RT 2012 standard
  • Excellent light transmission:  fixexed = opening
  • Reduced heating and lighting costs
  • Key-operated locks available
  • Groove 16mm
  • Complies with LCB regulations
  • Dual-colour possible
  • Reduced sill for disabled access
  • Available in all Profils Systèmes’ exclusive colours

Thermal Performances

  • Uw = 1.5 Wm2K / Sw=0.52 / Tlw=0.65 / Ug=1,1 Double-glazed window frame 1 leaf L1250xH1480mm
  • Uw = 1.1 Wm2K / Sw=0.47 / Tlw=0.58 / Ug=0,6 Triple-glazed window frame 1 leaf L1250xH1480mm



View our photo book

View online

Homologation

  • CSTBA DTA numbers : 06/12-2106 and 06/12-2106*01Add

Design

  • Factory Spirit® Straight cut design

Water Resistance

  • AEV Results : A*4 - E*9A - V*B2

Homologation

  • CSTBA DTA numbers : 06/12-2106 and 06/12-2106*01Add

Design

  • Factory Spirit® Straight cut design

Water Resistance

  • AEV Results : A*4 - E*9A - V*B2

Technical details

Frame Elements

  • Tubular : Thickness 60 mm with the option of clipping in the weatherdrip and seal cover and using a sub-frame for renewal of sheathing/housing in renovation work
  • Monoblock : For 100 to 200 mm straight-cut insulation. High cross-bar available for rolling shutter

Opening mechanism

  • Elegant tubular form inside, with a PVC recess (16 mm groove) and PVC glazing bead holding the glass.
  • Thickness 66.6 ou 75 mm

Glazing

  • Double or triple glazing available
  • From 24 to 38 mm for frames
  • From 24 to 36 mm for closing bars

Locking

  • 2-point rebated locking bolt, with striking plates above and below for windows in the frame rebate.
  • For large constructions extra locking points can be fixed on the lock mechanism as well as extra striking plates on the fixed leaf.
