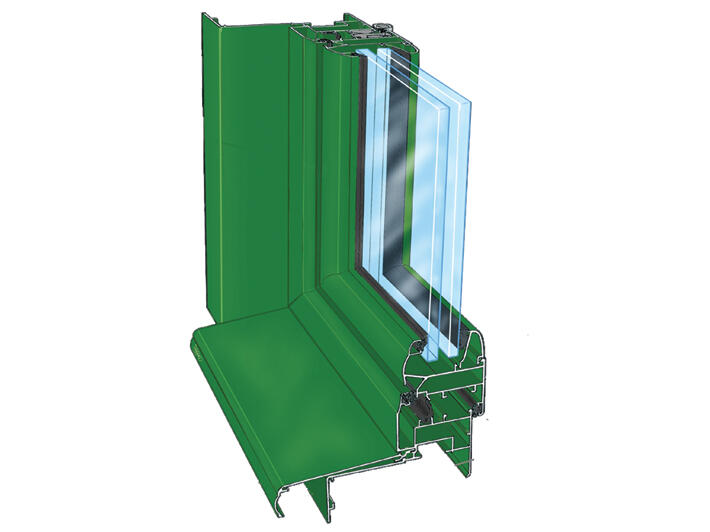

Dzao : traditional aluminium casement without thermal break
DZAO® is a « cold » range of traditional aluminium casements allowing the fabrication of very large-dimension chassis without thermal bridge break, particularly combined chassis housing casements, tilt-turn, hoppers….
Sturdiness and design
Highlights
- Complete range
- All kinds of chassis can be created
- Opening section width 55mm or 58.4mm
- Efficient water deflector on fixed frame
- Maximum Dimension up to: W2200 x H2300mm
- Hidden drainage on opening section
- Simplified gaskets : saves time
- Locking rod and handle without base-plate available
- Joint covers and weather-drips common to whole series
- Available in all Profils Systèmes’ exclusive colours
- Colour shades guaranteed up to 25 years
Weather tightness
- Dimensions W1400 x H1400mm / Results AEV: A*4 - E*8A - V*C5
- Dimensions W1300 x H2200mm / Results AEV: A*3 - E*9A - V*A3
Technical details
Fixed Frame
- Tubular 51mm fixed frame with clip-on weatherdrip available and jamb liners to cover insulation
Opening Section
- Tubular opening section : straight edges inside and outside in 55 and 58,4mm
- Hidden drainage on opening section
Glazing
- Single or insulated glazing from 4 to 30mm (50mm with expander) held by 2 EPDM gaskets and 1 clip-on glazing bead minimum height 21mm (base of groove).
