Logo coulissant aluminium Satin Road Satin Road® Sliding Doors

Satin Road® is the latest range of aluminium sections with thermal break designed by Profils Systèmes for constructing glide frames meeting French standard RT 2012 and the requirements of the HPE, THPE, and BEPOS high energy performance labels.
Available in curved design or Factory Spirit® straight design

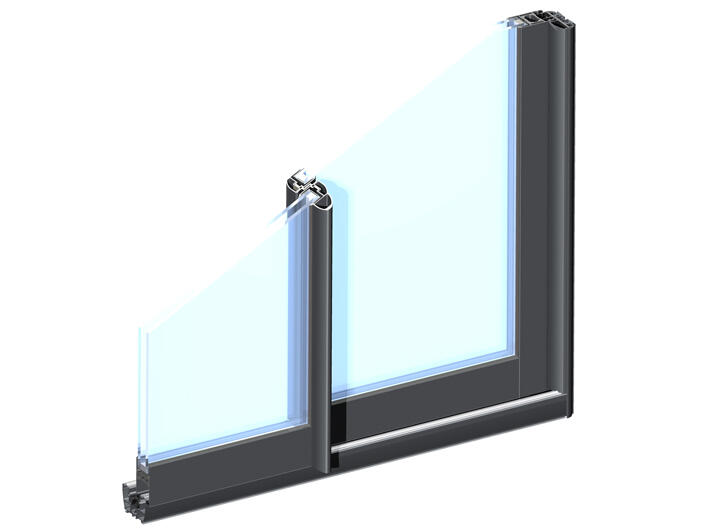

Satin Road® Aluminum Sliding

The low energy sliding door

Highlights

  • Compliant with French regulations RT 2012
  • Slimline joining section option - 40% less aluminium
  • High energy performance. Equip’Baie/Métal Expo Performance Trophy
  • High noise reduction
  • Patented thermal shield
  • Qualifies for tax credit
  • Height up to 3m
  • Glazing up to 32mm
  • Max. weight per glide frame: 250 kg
  • Optimum sunlight entry
  • Excellent light transmission
  • Possible reduced sill for disabled access (optional)
  • Can be fitted with drive unit
  • Available in all Profils Systèmes’ exclusive colours



Thermal Performances

  • UW=1.1 Wm²K and Sw=0.42 for an element of L 2350 x H 2180 mm (triple glazing frame)
  • Uw=1.4 Wm²K and Sw=0.42 for an element of L 2350 x H 2180 mm (double glazing frame)

View our photo book

View online

Accreditation

  • CSTB : DTA number 06/15-2263

Range

  • Height frames
  • Recessed sliding door
  • Monoblock

Weather tightness

  •  AEV (air-water-wind) test results : A*3 - E*5B - V*B2

Accreditation

  • CSTB : DTA number 06/15-2263

Range

  • Height frames
  • Recessed sliding door
  • Monoblock

Weather tightness

  •  AEV (air-water-wind) test results : A*3 - E*5B - V*B2

Technical details

Profiles

  • Baffles width : 35 mm
  • Width of side post with straight cut frame : 85 mm
  • Width of side post with mitre cut frame : 102 mm
  • Frame module :
    • 60 mm for 2 rails
    • 112 mm for 3 rails
    • 164 mm for 4 rails
  • Ait tightness ensured by brush sealing or TPE sliding seal.

Fixed frame

  • Fixed frame with 22 and 38mm polyamide strips

Glide frame

  • Hollow-section leaf with 28mm and 36mm polyamide strips

Glazing

  • Available for double or triple glazing
  • Glazing thickness 24 to 32mm
  • Maximum weight per leaf: 250 kg depending on configuration
