Logo Porte Dzao Dzao : Traditional alu door without thermal break

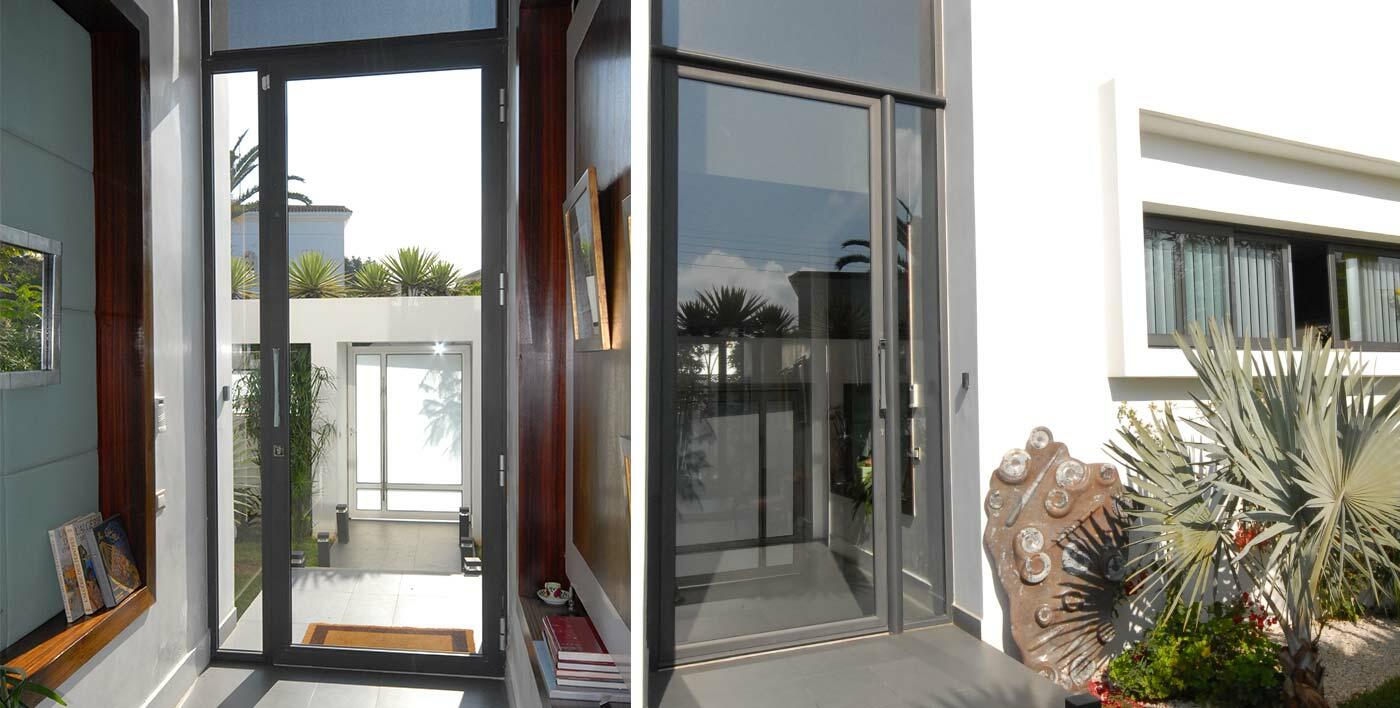

Porte d'entrée traditionnelle en aluminium DZAO

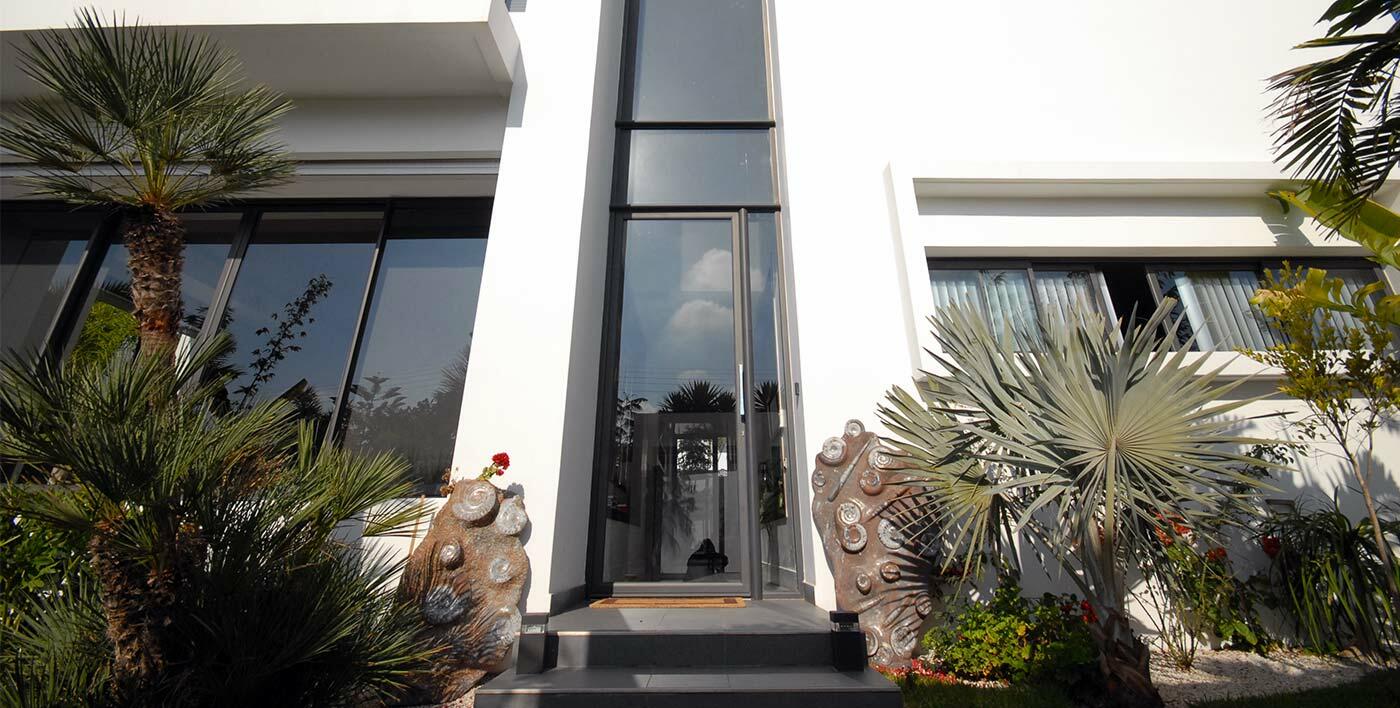

Porte d'entrée traditionnelle sans rupture thermique DZAO

The DZAO® range is designed for the fabrication of traditional entrance doors with no thermal bridge break. Thanks to its stylish design and robust construction, it can be used as a front door,
French window or for any use in façade joinery.

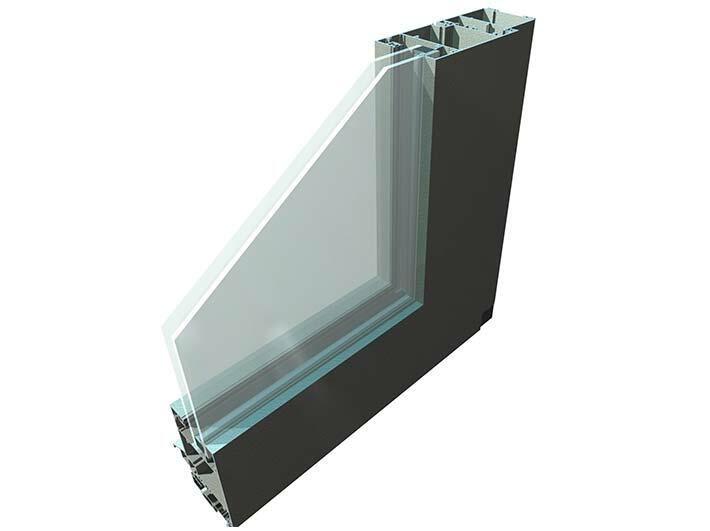

Coupe 3D Porte d'entrée alu DZAO

Sturdy and design aluminum traditional door

Highlights

  • Tough and elegant
  • Made in France
  • NF Standard Profile
  • Multi-point automatic locking
  • Disabled access : waterproof sill
  • Panel or glazing from 6 to 30 mm
  • Excellent water resistance
  • Combined chassis can be incorporated
  • Simplied gaskets : saves time
  • Handle without base-plate available
  • Powder thermo-lacquering : no VOC waste
  • Colour shades guaranteed up to 25 years
  • Available in all Profils Systeèmes’ exclusive colours

Acoustic Performance

  • Glazing 38/23 : Ra, tr = 36 dB
  • Glazing 4/6/10 : Ra, tr = 35 dB

Weather tightness

  • Dimensions W1400 x H1400mm / Results AEV: A*4 - E*8A - V*C5
  • Dimensions W1300 x H2200mm / Results AEV: A*3 - E*9A - V*A5

View our photo book

View online

Esthetics

  • Factory Spirit® : Straight, sleek lines on all fixed frames and opening sections
  • Classic® : Curved lines with a slight wave giving the profiles a modern aspect
  • Design®  : Curved lines with a slight wave giving the profile its special character



Range

  • 1 or 2 leaves

Esthetics

  • Factory Spirit® : Straight, sleek lines on all fixed frames and opening sections
  • Classic® : Curved lines with a slight wave giving the profiles a modern aspect
  • Design®  : Curved lines with a slight wave giving the profile its special character



Range

  • 1 or 2 leaves

Technical details

Fixed Frame

  • Tubular 51mm fixed frame with clip-on weatherdrip available and jamb liners to cover insulation

Opening Section

  • Straight tubular opening section (Factory Spirit® version) inside and outside in 55 and 58,4 mm
  • Curved tubular opening section (Design® and Classic® version) inside and outside in 55 and 58,4 mm

Glazing

  • Single or insulated glazing from 6 to 30mm (50mm with expander) held by 2 EPDM joints and 1 clip-on glazing bead minimum 21mm high (base of groove).

Locking

  • 1, 2 or 3 points points rod locking
  • Locks for European groove with specialised hardware
  • ASSEMBLY : mitre-cut with European groove corner cleats only
