Profils Systèmes presents its new Cuzco® 713OC aluminium casement with concealed opening and progressive insulation values

08 january 2017 - Product News

Cuzco® series 713OC is the very latest line in aluminium casement windows with concealed opening and progressive thermal insulation created by Profils Systèmes. For newbuild and renovation, it assists the creation of windows and French windows with very high thermal values.  Its highly refined FACTORY SPIRIT® design optimises light gain and provides new architectural possibilities.

3 levels of thermal protection are available according to the thermal shield chosen and overall performance values desired:

Thermal bridge standard THERMIQUE TH:
Uw= 1,5 W/m2K – Sw= 0,47 – Tlw= 0,60

Thermal bridge BOUCLIER TH+:
Uw= 1,4 W/m2K – Sw= 0,47 – Tlw= 0,60

Thermal bridge BOUCLIER TH Max:
Uw = 1,3 W/m2K – Sw = 0,47 – Tlw = 0,60

For window 2 leaves 1530 mm (L) x 1480 mm (H). Ug = 1.1  Swisspacer ULTIMATE spacer - with Warmedge

This range complies with the RT 2012 standard and is eligible for CITE tax credits

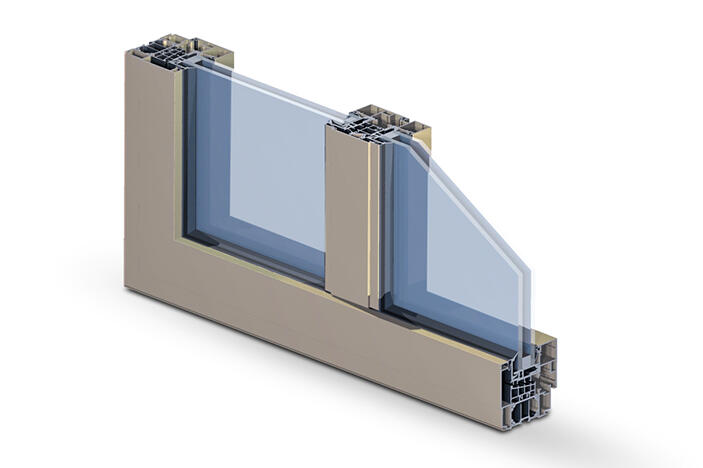

With a 70 mm fixed frame, the new concealed opening is available in either tubular or monoblock form.
An elegant 69.4 mm tubular opening on the interior with PVC slot and glazing bead.

Lower disabled access sill, screw-in or slide-in hinges a 16 mm slot and numerous other options link performance and technical facility.

With the straight lines of its Factory Spirit® design, aluminium sections reduced down to 72.2 mm, and its 68.1 mm central mullion this range is one of the finest on the market.

Cuzco® 713OC is available in all Profils Systèmes’ exclusive range of colours: Terra Cigala®, Mahoé®, Eclat Métalliques®, Profils Color® et Terre de Matières®. Shades are guaranteed for up to 25 years.

Profils Systèmes offers new handles without base-plates and centered handles as an option under the Canberra® brand.

Cuzco® 713OC will be available at the end of 2017.
