French manufacturer
Homepage Aluminum Joineries Shutters Taos aluminum hinged shutter

Volet aluminium Taos Taos aluminum hinged shutter

Volet battant Taos 1
Volet battant alu Taos
Volet battant aluminium Taos effet bois
Volets battants Taos

The Taos aluminum profile range is made for hinged (1, 2, 3 or 4 leaves) or sliding shutters.
You can adapt this series for new and renovation projects thanks to accessories easy to use.
A thermal insulation full blade version has the BBC labels and is elegible for credit tax.

Taos® Aluminum Hinged Shutter

Design and Safety

Hightlights

  • Very wide choice of models
  • Design of sections and molded pieces
  • Brackets and cross-pieces invisible on the upright
  • Available in sliding version
  • Available in the Profils Systèmes' exclusive colours
  • Colour shades guarantee up to 25 years

Thermal Performances

  • The shutter with  thermal insulation blades allows obtaining a R of 0.27 m².K/W (BEB3.9.0056.2 of CEBTP).



View our photo book

View online

Max. dimensions

  • H2500 x W2000 mm (max. load per leaf: 50 kg)

Models

  • Solid shutters with thermal bridge break slats
  • Solid, horizontal or vertical slats
  • Board and batten shutters
  • Straight or curved
  • Shading louvered shutters
  • Open louvered shutters
  • Adjustable louvered shutters
  • Shutters with opening flaps

Weight per leaf

  • Up to 50 kg

Max. dimensions

  • H2500 x W2000 mm (max. load per leaf: 50 kg)

Models

  • Solid shutters with thermal bridge break slats
  • Solid, horizontal or vertical slats
  • Board and batten shutters
  • Straight or curved
  • Shading louvered shutters
  • Open louvered shutters
  • Adjustable louvered shutters
  • Shutters with opening flaps

Weight per leaf

  • Up to 50 kg

Technical details

Opening sections

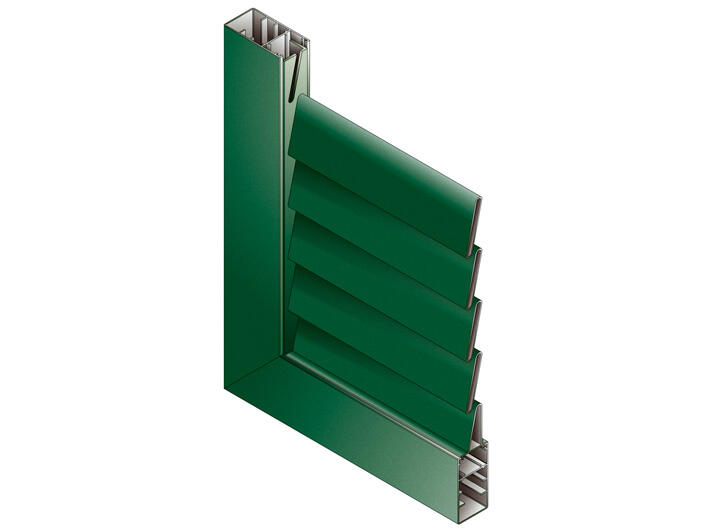

  • Aluminium tubing 62 x 33 mm section for louvered or mixed shutters, 27 mm for solid shutters

Assembly

  • The frame and the opening panels are fixed with clawed or stubbed corner fittings.
  • All these parts are in aluminium or stainless steel.



Metalwork

  • The shutter is hung from aluminium strap hinges, the crossbar serving as a hinge support for “board and batten” shutters. More hinges are added according to the size and weight of the shutter
  • All fixings are aluminium or stainless steel

Locking

  • The shutters are locked by a bolt lock bar anchored above and below.
  • A locking casement stay ensures ventilation with security

You will like also

Download

Commercial Documentations

094_155_sheet_sliding_and_casement_aluminium_shutters_taos (PDF - 349.56 kB)
