Profils Systèmes presents its new cuzco® 713M aluminium minimalist casement window

01 february 2017 - Product News

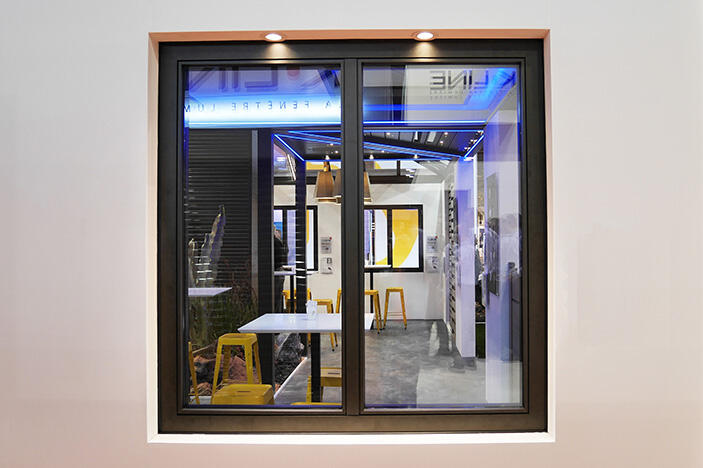

Cuzco® series 713M represents the very latest generation of 70mm casement windows with minimised opening and progressive thermal values. With an extremely reduced aluminium sightline on the opening section, it offers a very attractive design compromise for professionals.

On the base of the fixed frame of the old series 713, it uses the opening section of series 713 (concealed opening) with an added exterior glazing bead. For newbuild and renovation, this range of windows and French windows achieves very high thermal insulation values.

Design, performance and accessibility are the strong points of the Cuzco® 713M aluminium casement, which is available with a disabled access sill.

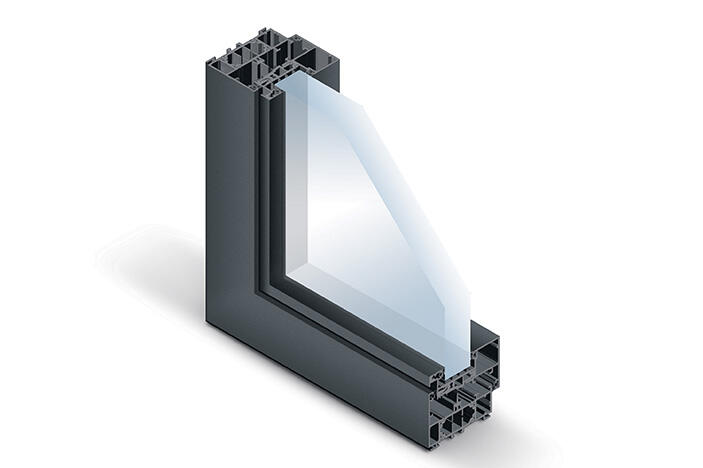

Discretion and sobriety are the watchwords for this range, with its reduced aluminium sections of 72.1 mm on the opening section and fixed frame, along with a 73.1 mm central mullion and a European slot.

Thermal bridge standard THERMIQUE TH:
Uw= 1,5 W/m2K – Sw= 0,49 – Tlw= 0,62

Thermal bridge standard BOUCLIER TH+:
Uw= 1,4 W/m2K – Sw= 0,49 – Tlw= 0,62

Thermal bridge standard BOUCLIER TH Max:
Uw= 1,3 W/m2K – Sw = 0,49 – Tlw = 0,62

For window 2 leaves L1530 x H1480mm – Ug : 1.1 avec Swisspacer ULTIMATE spacer

The range complies with the RT 2012 standard and is eligible for CITE tax credits.

Cuzco® 713M is available in all Profils Systèmes’ exclusive colour range: Terra Cigala®, Mahoé®, Eclat Métalliques®, Profils Color® and Terre de Matières®. Shades are guaranteed for up to 25 years.

Cuzco® 713M will be available in April 2017.
