Toundra Aluminum Sliding Doors

Toundra® is a complete range of designer aluminum profiles made to manufacture sliding doors element equipped with thermal insulation.

Thermal bridge break sliding bay

Compying with RT 2005
Eligible for Credit Tax
Complete range: from 2 rails/4 leaves recessed aluminium sliding door to 4 rails/8 leaves version.
Highly contemporary design;
Special renovation frame for front fitting;
Bi-coloration possible thanks to thermal insulation with insulation strips;
Available in all exclusive colours: Terra Cigala®, Maohé®, Eclats Metalliques®, Profils Color, the Ral colour palette.
Motor-Drive Possible

2 leaves sliding doors

Rating Uw = 1.5 m²K and Sw = 0.47 for an element L 1850 x H 2180 mm

Rating Uw = 1.8 Wm²K and Sw = 0.58 for an element of L 1850 x H 2180 mm

a 4-leaf, 2-rail recessed sliding door with specific leaves for element of up 3 metres in height.

Monoblock

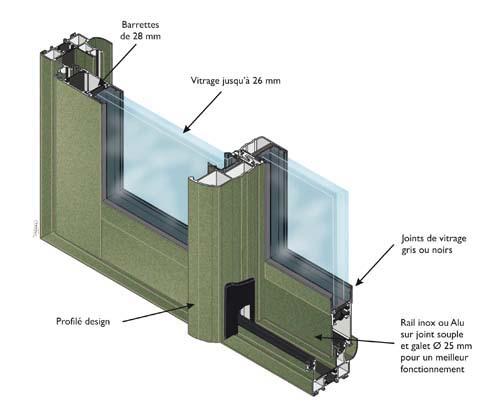

Technical details

Frame

2-rail single-piece frame for double glazing 100, 120, 140 and 160 mm
2-rail tubular frame, width 55mm / height 46.2 mm
Central post width 38 mm
28 mm polyamid strips

Vent

Polyamid strips of 28 mm or 34 mm on high sliding door
Vents can have glazing up to 28 and 30 mm on high sliding door and up to 26 mm on classic sliding door.

Bearing

25 mm diameter rollers for smoother operation

Jaya® Reduced Junction

A specific reduced junction profile is available as an opinion on 2-leaves sliding element on 1 rail (concealed sliding door), 4-leaf on 2 rails (traditional or recessed sliding door) and 6-leaf on 3 rail (traditional) versions.
The mass of aluminum visible is reduced by 40% (i.e from 147 mm to 88 mm)
Optimised sunlight exposure
A barrel lock can be built in to allow for outside access

Recessed Sliding Door

This new special door system is perfectly adapted both for new constructions and renovation work; Mobile leaves can be fully recessed into the adjacent walls so every inch of the bay is opened.

Recessing of the leaves can be on either side of the bay or on one side only.

High Sliding Door

These vents enable large dimensions:

Up to L 1500 x H 3000 or L 2000 x H 2500 mm per leaf
2-leaf element L 3000 x H 3000 mm or L 4000 x H 2500 mm

Monoblock Sliding Door

Possibility of assembly on single piece 2 rail frame including shutter pieces and cover strip. This single-piece frame system for sliding door keeps manufacturing time low to ensre a comptetitive price.
