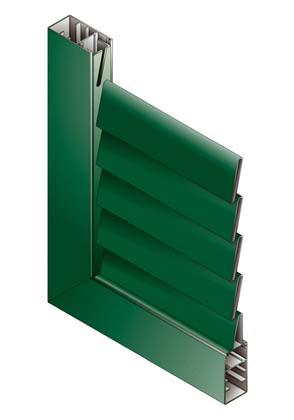

Taos aluminum hinged shutter

The Taos aluminum profile range is made for hinged (1, 2, 3 or 4 leaves) or sliding shutters. You can adapt this series for new and renovation projects thanks to accessories easy to use. A thermal insulation full blade version has the BBC labels and is elegible for credit tax.

Design and Safety

  • Very wide choice of models
  • Design of sections and molded pieces
  • Brackets and cross-pieces invisible on the upright
  • Available in the Profils Systemes ‘s exclusive colours: Terra Cigala®, Mahoé®, Eclats Metalliques®

The shutter with  thermal insulation blades allows obtaining a R of 0.24 m².K/W (BEB3.9.0056.2 of CEBTP).

Eligible for tax rates.

Available in sliding version

Technical details

Vents

Tubular with a 62*33 mm section for Persian or combination shutter, 27 mm for full shutters.

Assembly

Frames and vents are assembled using pin or crimped corner cleats.

All of these mounting components are made of aluminum and/or stainless steel.

Frame

It is offered as an option, but greatly simplifies installation.
Tubular, 61 mm thick with a 30 mm exterior cover and sealing gasket.

Installation system

Installation options:

  • On the fixed frame
  • On screwed portrait hinged
  • On chemically sealed hinges

?

Accessories and fastenings

All fastening are of stainless steel .

Latching

Latching is ensured by aluminum hinges and counter-hinges, the bar serving as the counter hinge in the case of full shutters with cross bars.

Locking

Latching options :

  • By an aluminum or composite catch
  • By an aluminum bolt bracket

Download

Commercial documentations

094_155_fiche_sliding_and_casement_aluminium_shutters_taos (PDF - 889 ko)
