Structure for 3kw photovoltaic panels

Thanks to the Tanagra range (Architecture Trophy 2010 by FFPV) and Wallis&Energy winter gardens (bronze trophy by Energaia 2010), Profils Systemes intruded on an increasing market. Profils Systemes offers an aluminum structure to integrate photovoltaic panels to all kind of residential building (new or already existing) to replace traditional covers.

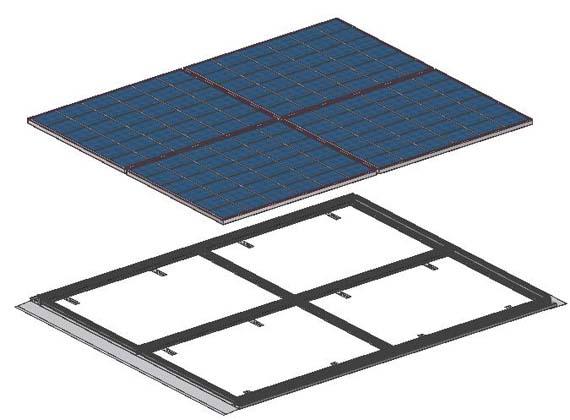

Aluminum solar kit

Highlights

  • Easy to install
  • Variable dimensions according to the panel
  • Adaptable from 30 to 50 mm thickness panel mm
  • EPDM gasket resisting to thermal variations
  • Pieces for the cable passing under skeleton
  • Ventilated system
  • installation in portrait or landscape
  • No allowance according to the existing roof plan (except flat tile)
  • French conception and manufacture

Technical details

Pressure Caps

The TPV bicomponent pressure caps profiles which holds photovoltaic panels and ensure the thickness of the system are screwed-down in structure profiles. It allows disassembly and high thermal performances results

Theese TPV pressure caps are grade 4 and resist to high temperatures.

Utilization

In France and French overseas Provinces

  • And/Or prairie climate (less than 900m) or in a mountain climate (more than 900m)
  • On residential buildings
  • On new or already existing buildings
  • To replace elements on traditional covers
    • flat tiles, terra cotta, concrete
    • gauge flat with fitting, glide, terra cotta or concrete
    • relief flat with fitting, glide, terra cotta or concrete
    • ”canal” flat terra cotta

On only part of the surface, without never go until the roofing edge (lateral shore, roofing, sewer).
