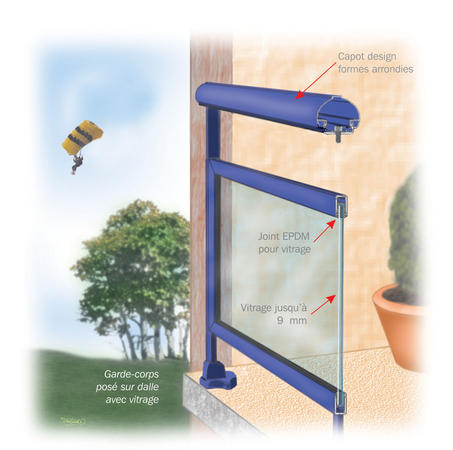

Macassar aluminum balustrade

Macassar is a range of aluminum profiles designed for the fabrication of or railings, allowing to design any shape: straights, ramps or arches, with bars, filled glazing or Altuglass, ship style. Assembly, adjustment and installation are easy for: fixtures on slab front, on slab, on low wall, in stairways. Studied for both railings and pool barriers, the design of the Macassar fixtures are curved, non-aggressive, and are reminiscent of the emblem of St Jacques de Compostelle. The fixture piece is one of the main piece for the studiness of the balustrade. Screws are hidden by an aluminum lacquered cap. Profils can be coated in the entire Profils Systemes’s exclusive colors: Mahoé & Eclats Métalliques.

Aluminum balustrade: safety and design

Highlighs

  • Design of the profile and molded pieces
  • Very wide choice of models

Technical details

Maximal dimensions

(between mullions)

  • 1500 mm for private places
  • 1000 mm for public places
  • Test realized en may 2000 by the CEBTP in conformance with French standards NF P 01-013 of august 1988 :
    • n° b 222.0.042-1
    • n° b 222.0.042.2
    • n° b 222.0.042.3
    • n° b 222.0.042.3

Accessories and fastenings

Most visible accessories exist or can be created in the railing colors. Connectors are of either stainless steel or aluminum. All fastenings are of stainless steel.

Download

Commercial documentations

094_200_depliant_garde_ corps_et_rampes_aluminium (PDF - 2451 ko)
