Tanagra photovoltaics facade

With its different versions (traditional grid, horizontal capping, VEC, VEP, skylights), this curtain wall can integrate photovoltaic panels. A photovoltaic solar generator integrated in the skylight or in the curtain wall can totally or partially create electricity produced by solar panels. Electricity is bought by EDF with preferential prices.

The aluminum solar facade

Highlights

  • Unique structure
  • Carefully studied aestheticism
  • Annual income as energy producer
  • Quicker to manufacture and to install
  • Large glazed surfaces
  • Thermal and acoustic insulation
  • Possibility of steel reinforcements
  • Available in the entire Profils systemes® exclusive colours.

Thermal Performances

  • Report n° CLC 07-26006453
    • A4  R7 E5 I5
    • Normal air pressure 1200 Pa
  • Report n° CLC 06 -26003166
    • AE  R6 E5 I5
    • Normal air pressure 1200 Pa

Range

Available in grid version, horizontal frames and skylight

Technical details

Structure

The TANAGRA® curtain wall is a thermal insulation facade system.

The structure is composed of 52 mm wide tubular Mullions and Transoms.

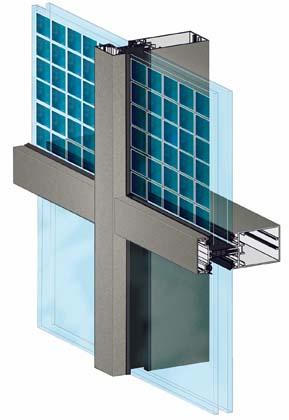

Rabbet expanders are added to mullions and transoms to integrate junction box of photovoltaic panels. Theese expanders are used with serreurs and caps of 80  mm, especially adapted which allow to conceal cables.

Vents

Vents :

It's possible to integrate many different kind of vents (French casement, turn & tilt opening, top hung and bottom hinge, fireman access, hinged windows and sliding windows).

Filling

8 mm to 36 mm
All modules are available: :
    * Simple glazing (example : 44.2, 44.4, 55.2)
    * Double glazing, Ug insulation rating until 1.1W/m².K (exemple : 44.2/16/4 or 44.2/16/44.2)
    * Triple glazing, Ug insulation rating until 0.5W/m².K on clear generator, 5 types of photovoltaic cells are available: polycrystalline, monocrystalline, high output…
Modules allow lighting as classical glazing. Expander grooves are added to transoms and mullions to integrate photovoltaic junction boxes.
